| E-BUGGY COMBO |
APPLICATION |
| 1512-1800KV |
This setup is recommended for 3s or 4s use in a vehicle weighing less than ~9lbs
and geared for no more than ~45 MPH. If you have a heavier vehicle, looking for
more speed or just want to beat the ever loving snot out of your vehicle we would
recommend picking up the Mamba Monster X combo (010-0145-05). This motor has
4mm connectors for fitment with the Mamba X ESC.
|
FEATURES:
- Wide 2s-6s input voltage range for powering a wide variety of applications
- Sensored, Sensorless and SmartSense™ Running Modes
- Brushless and brushed motor operation
- Powerful Integrated 8A Peak Adjustable BEC (5.5V-8.0V)
- Data logging capability to capture and record performance data from your vehicle
- Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
- Compatible with S.BUS2 Telemetry Link and Futaba T4PX and T7PX transmitters
- Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
- Dial in ESC settings, update ESC firmware and view data logs with Castle Link USB programming kit (sold separately, Castle Link software located here)
|
- Optional smartphone-based programming, firmware updates and data log viewing with the B-LINK™ Bluetooth Adapter (sold separately) and Castle Link software for iOS or Android (free download)
- ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer
- Waterproof design for all weather conditions
- Factory equipped thermally controlled (and removable) 30mm cooling fan
- 12 AWG high strand count silicone coated copper power wires
- Integrated Capacitors and 4mm Bullet Connectors add durability in extreme conditions
- Audible Alerts and LED Alerts for easy diagnoses of common issues such as motor-over-temperature and low-voltage cutoff
- ROAR and RECON 6 Certified ESC
|

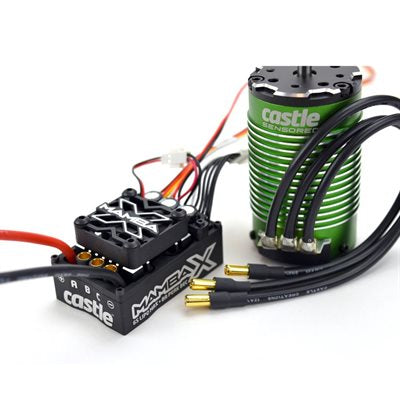

MAMBA X ESC WITH 1512-1800KV COMES WITH:
- Mamba X ESC with Sensor Harness
- 1512-1800kv sensored motor
|
- Mamba Decals
- Driver's Ed Guide/ Quick Start Guide
|

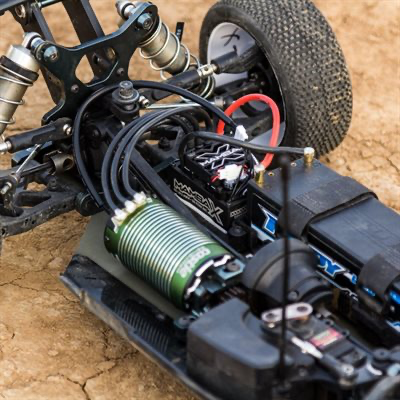

*In 1/8th scale setups, the Mamba X is intended to be used for off-road racing in buggies weighing up to 9 lbs (including batteries and ready-to-run). In these 1/8th scale racing setups, the Mamba X should be run at 4S Lipo (16.8V) max and is recommended to be paired with the Castle 1512-1800Kv or Castle 1515-2200Kv motor, with appropriate gearing only.
