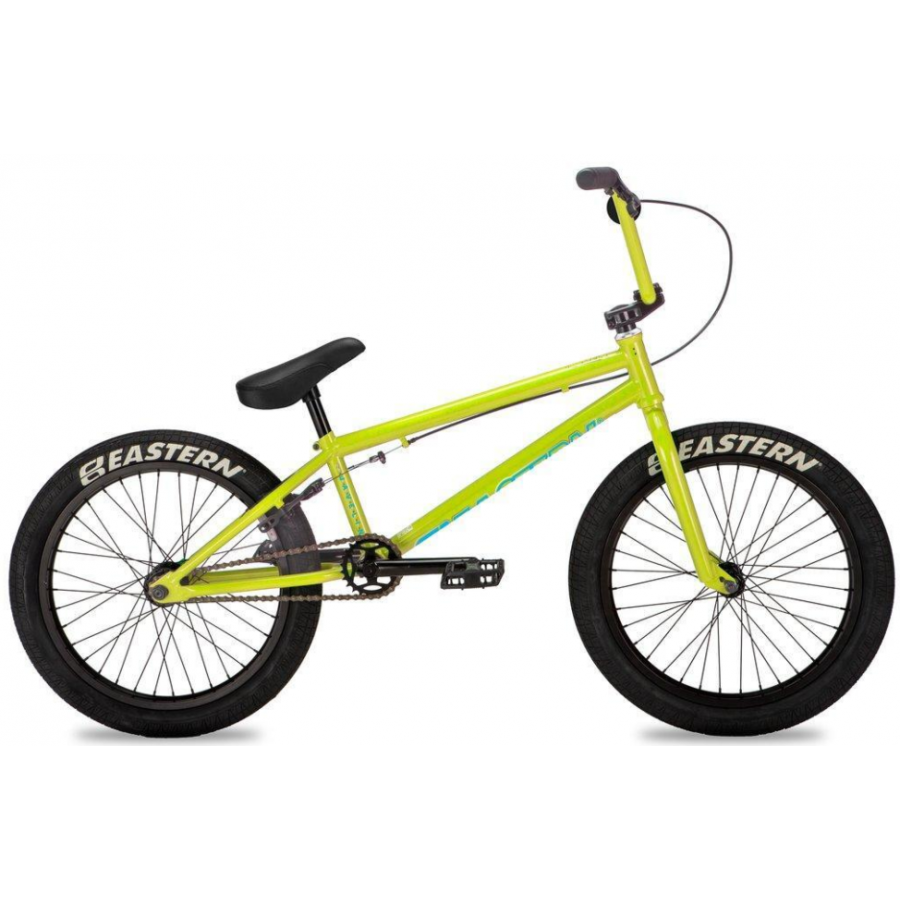

Eastern Javelin BMX 20" Neon Yellow

The Eastern Javelin is a beginners bike with a little extra. The Javelin features a rugged steel frame w/ chromo down tube, sealed front & rear hubs for a long-lasting smooth ride. Sealed bearing integrated headset, a 3-piece chromoly cranks, Eastern grips, pedals, and sprocket.

25.7 Lbs

• Chromoly Down Tube
• Sealed Front & Rear Hubs
• 3 Piece Tubular Cranks
• Chromoly Steerer Tube
• Mid BB
• Integrated Headset
• Eastern Riblet Grips
• Eastern Atom Pedals
• Eastern Sprocket
• Double Wall Rims
• 2.4" Eastern OEM Tires

FRAME

Hi-Tensile Steel with Chromoly Down Tube, Mid BB, Internal Headset

Top Tube Size: 20.5″

BB: Mid

Headtube: Integrated

Chainstay Length: 13.38″

Clamp: Integrated with Frame

BARS

Hi-Ten 8.5"

Upsweep/Backsweep 12⁰/1⁰

FORK

Chromoly Steerer Tube with Hi-tensile steel Tapered legs, 3/8" dropouts

Fork Rake: 28mm

HEADSET Integrated 45°X45° Sealed Cartridge Bearing

STEM Forged Alloy Top Load Stem

GRIP Eastern Riblet Grips

CRANK 3-Piece, Tubular Heat-Treated Chromoly, Bolt for Sprocket, Pinch Bolt with 8-Splined Spindle, 170mm  28.6mm Round Arm

BOTTOM BRACKET Sealed Bearing Mid

CHAINWHEEL Eastern Phorcys, Cold Hard Steel, 25T

CHAIN KMC Z510 1/2 x 1/8

PEDAL Eastern Atom Plastic Pedal with 9/16" Axle

REAR BRAKE U-Brake, Forged Alloy, Wide Body, Clear Brake Pads

REAR LEVER Forged Alloy Lever

BRAKE CABLE [S] LINEAR

SADDLE Medium Width Seat/ Post Combo

POST Comes with seat

FRONT HUB Sealed Bearings, Forged Alloy Shell, Drilled for 36 Spokes, 3/8" Chromoly Axle

REAR HUB Sealed Bearings, Forged Alloy Shell Drilled for 36 Spokes, 14mm Chromoly Axle

FREEWHEEL 9 Tooth Driver with Hub

FRONT RIM Alloy, Double Wall, Drilled for 36 Spokes

REAR RIM Alloy, Double Wall, Drilled for 36 Spokes

SPOKES 14 Gauge with Brass Nipples

FRONT TIRE Eastern OEM 20 x 2.40

REAR TIRE Eastern OEM 20 x 2.40

PEG none
