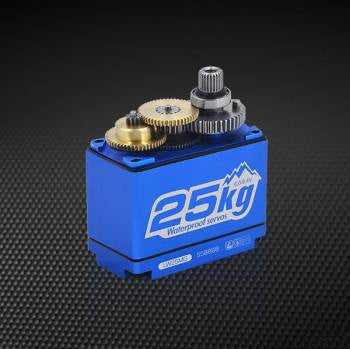

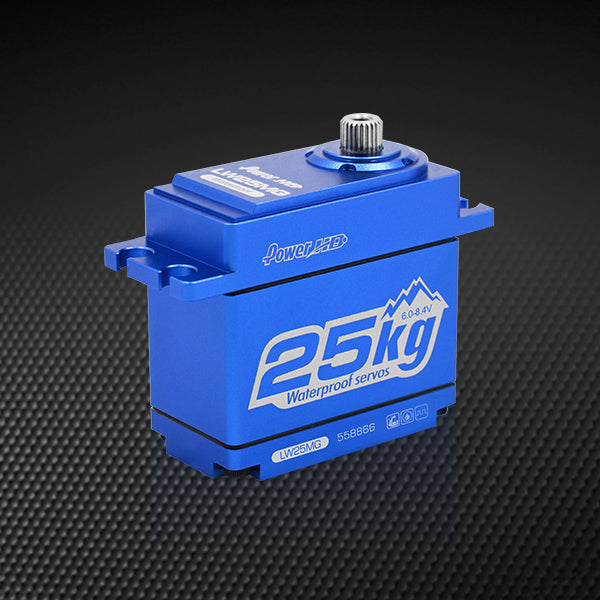

Power HD LW-25MG Digital Waterproof Servo 25KG 0.14sec@7.4V
| Specifications |
| Torque(6.0V): |
23.0 kg-cm (319.4 oz/in) |
| Torque(7.4V): |
25.0 kg-cm (347.2 oz/in) |
| Speed: |
0.16 sec (6.0V)
0.14 sec (7.4V) |
| Operating Voltage: |
6.0 ~ 8.4 DC Volts |
| Spline: |
25T |
| Case Colour: |
Blue |
| Weight: |
72.0g (2.54 oz) |
| Bearing Type: |
Ball Bearing x 2 |
| Motor Type: |
DC Motor |
| Gear Type: |
Copper & Aluminum |
| Operating Temperature: |
-20°C ~ 60°C |
| Working frequency: |
1520 micro seconds / 333hz |
| Size: |
40.7x20.5x38.6mm (1.60x0.80x1.52") |
