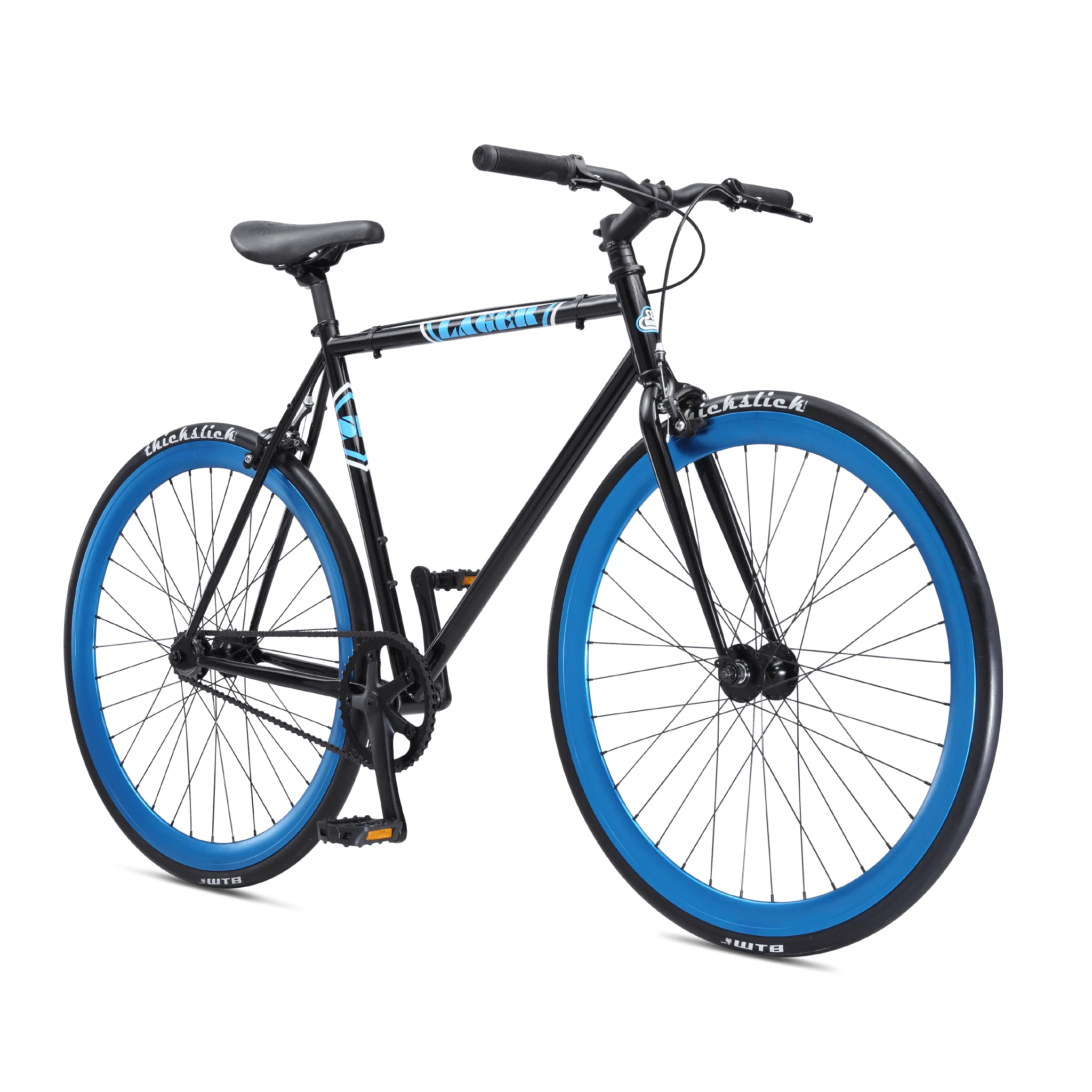

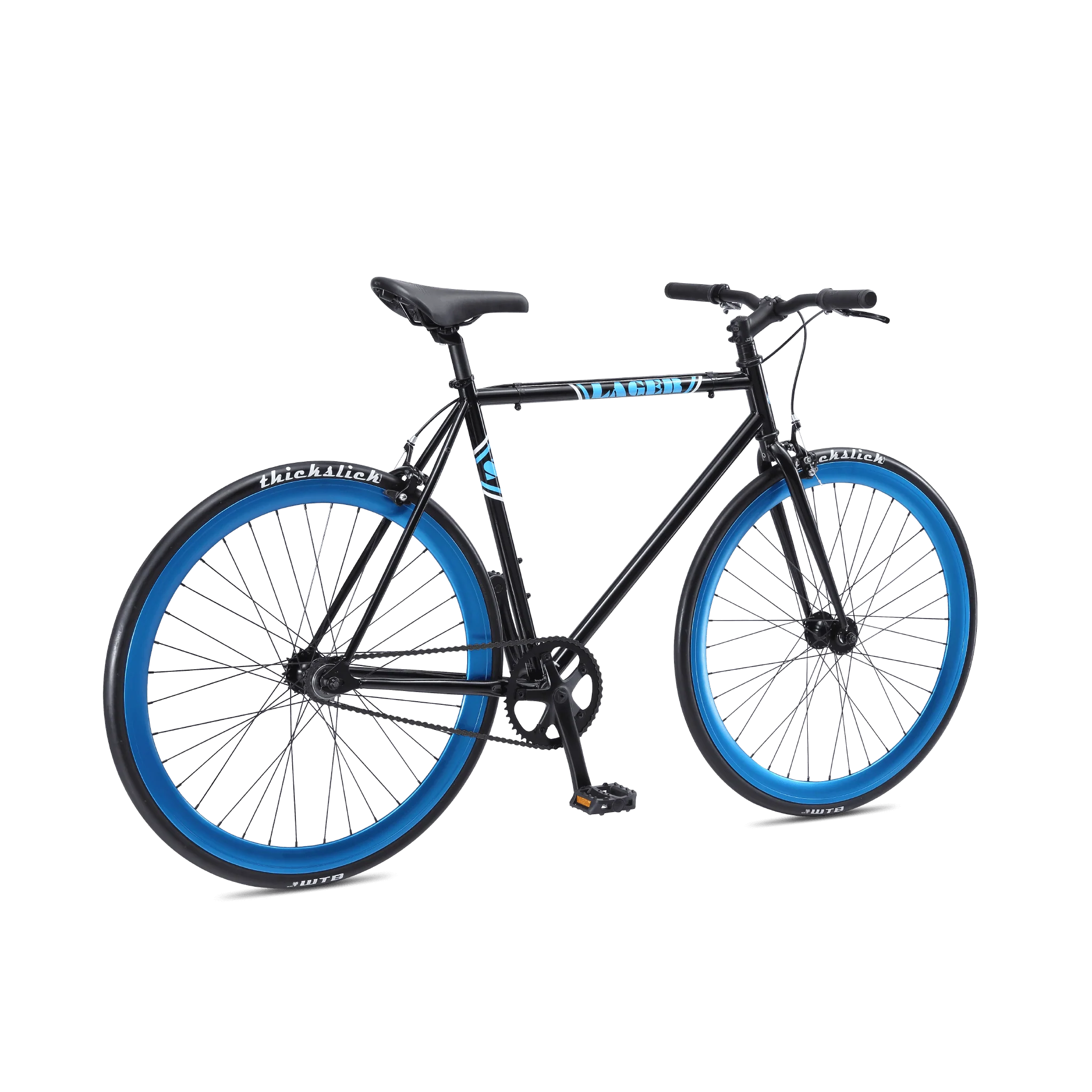

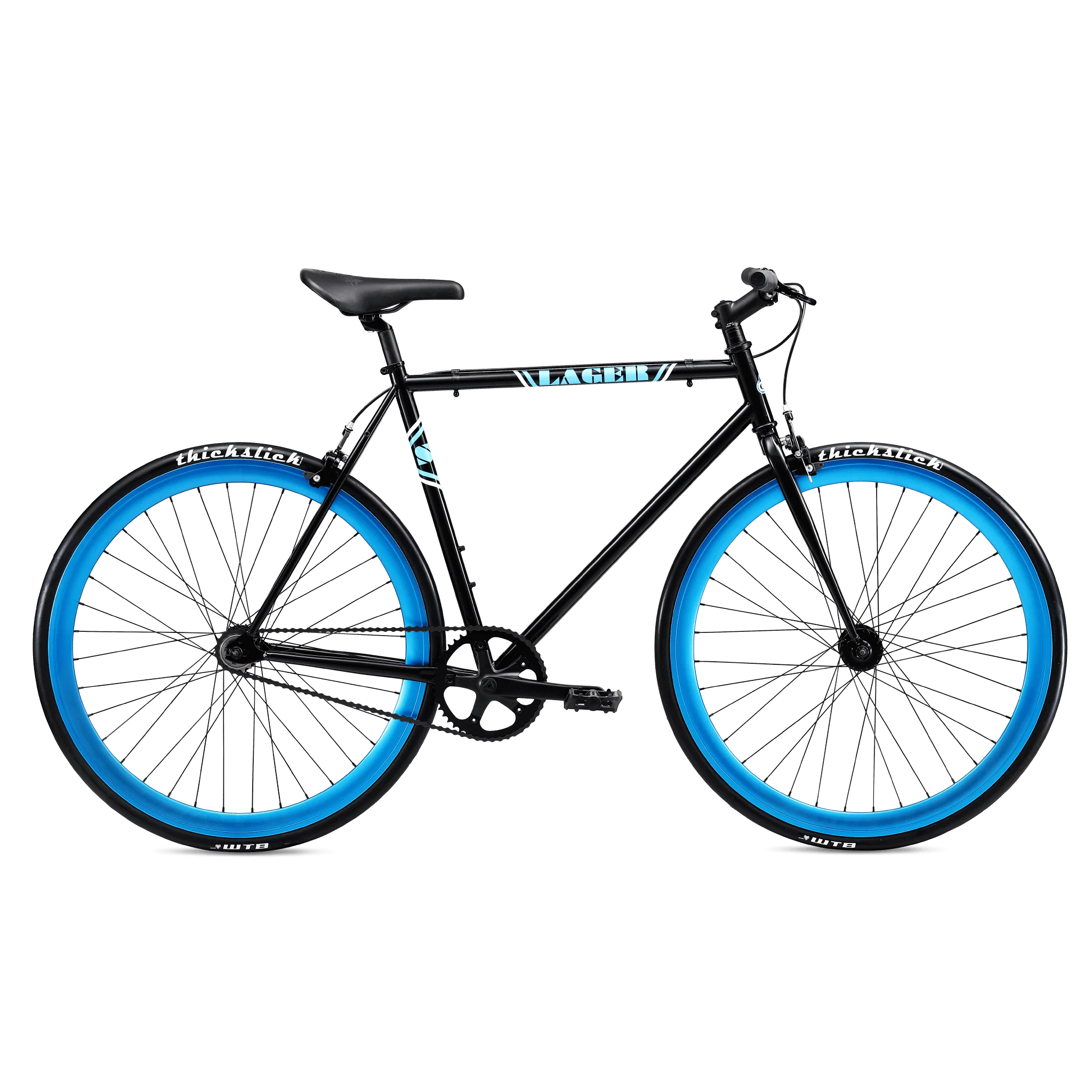

The Lager packs a quality punch with a butted top tube and down tube, Cr-Mo seat tube, alloy cranks, and super smooth Freedom ThickSlick tires. The perfect bike to get you where you want to go and in style.
- Hi-Ten steel urban single-speed style frame with butted top tube and down tube, Cr-Mo seat tube with integrated seat clamp, plus water bottle and fender mounts for increased carrying capacity
- Hi-Ten SE steel straight leg fork with wide tire clearance
- Dual pivot alloy brakes
- Alloy cranks with sealed cartridge Euro bottom bracket
- SE high-flange alloy fixed/free 36H hubs with extra high-profile double-wall rims
| Bike Size |
49cm |
52cm |
55cm |
58cm |
| |
Size |
XS |
S |
M |
L |
| A |
Seat Tube, Center to Top |
490 |
520 |
550 |
580 |
| B |
Top Tube, Effective |
553 |
562 |
573 |
580 |
| C |
Head Tube Length |
90 |
95 |
125 |
155 |
| D |
Seat Tube Angle |
74° |
74° |
74° |
74° |
| E |
Head Tube Angle |
72° |
72° |
72° |
72° |
| F |
Chainstay Length |
420 |
420 |
420 |
420 |
| G |
Wheelbase |
1006 |
1016 |
1028 |
1036 |
| H |
Bottom Bracket Drop |
58 |
58 |
58 |
58 |
| I |
Standover |
758 |
775 |
802 |
833 |
| |
Stem |
65 |
65 |
80 |
90 |
| |
Handlebar Width |
580 |
580 |
580 |
580 |
| |
Crank |
165 |
165 |
170 |
170 |
| |
Wheel Size |
700c |
700c |
700c |
700c |
| |
Seat Post Diameter |
27.2 |
27.2 |
27.2 |
27.2 |
