Sky RC 1/10 Cheetah Sensored Power System w/Programming Card (21.5T)
Regular price
$149.99
Cheetah 1/10th 60A Sensored Combo set comes with Cheetah 60A Sensored ESC, Cheetah Sensored Motor and Program Card, which is perfect for 1/10th scale Car. 5 kinds of motor KV are selectable to meet your request for speed or torque.

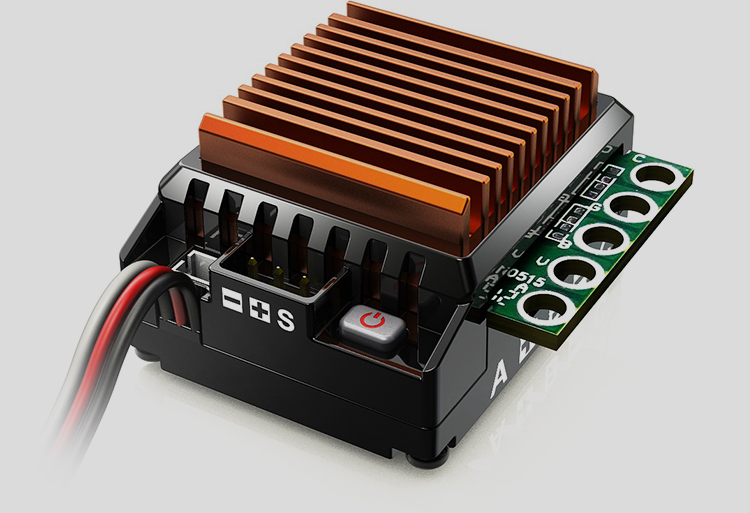

SkyRC Cheetah 60A Sensored ESC with Cheetah1/10th Sensored 1600KV/21.5T Motor and Program Card
| ESC Specifications | |
|---|---|
| Constant/Burst Current: | 60A/380A |
| Motor Compatible: | Brushless Sensor & Sensorless ESC |
| Car Compatible: | 1/10 and 1/12 Buggy and Touring Car |
| Motor Limits: | 5-6S NiMH or 2S LiPo--≥8.5T(1/10 Touring Car), ≥10.5T(1/10 Buggy) 8-9S NiMH or 3S LiPo--≥10.5T(1/10 Touring Car), ≥13.5T(1/10 Buggy) |
| Resistance: | 0.0007ohm |
| Battery Cell Count: | 2-3S LiPo or 4-9S NiMH |
| BEC Output: | 6V@3A |
| Dimensions: | 39 x 38 x 20mm |
| Weight: | 30g |
| Waterproof: | NO |

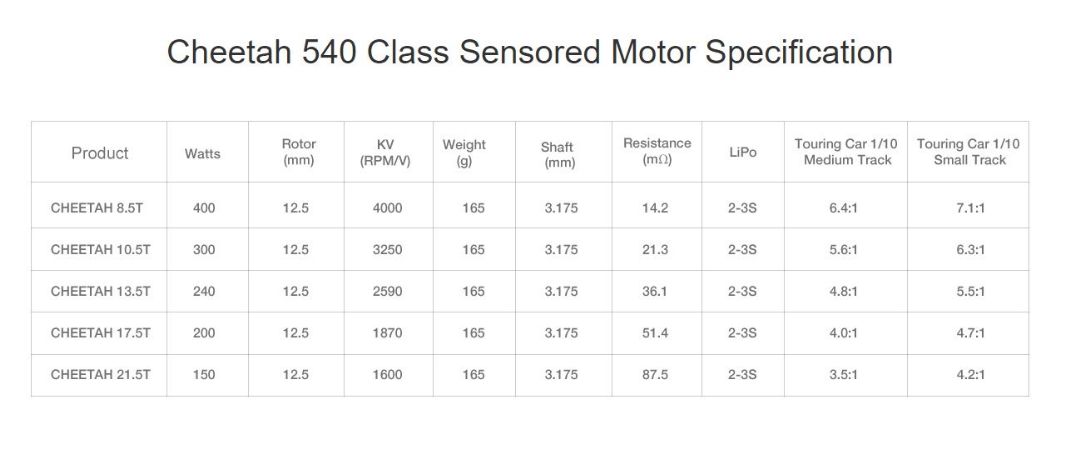

| Cheetah 540 Class Motor Specifications | |
| Watts: | 150 |
| Rotor: | 12.5mm |
| KV (RPM/V): | 1600 |
| Weight: | 165g |
| Shaft: | 3.175mm |
| Resistance: | 87.5 |
| LiPo: | 2-3S |
| Touring Car 1/10 Medium Track: |
3.5:1 |
| Touring Car 1/10 Small Track: |
4.2:1 |
| Waterproof: | NO |
